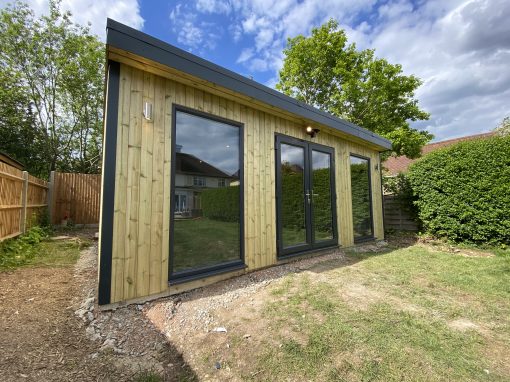

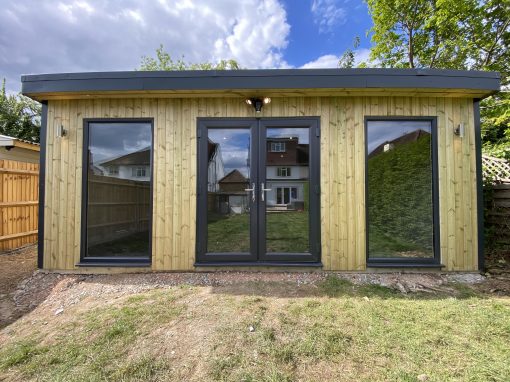

The Edge – 5300mm x 6000mm

£14,269.26

✅ Low rate finance
✅ 4 Weeks lead time
✅ Nationwide installation and delivery
✅ FREE bespoke service
✅ Spec options on all buildings
🇬🇧 UK Manufacturer
Category:

Product Categories

Cart

Base unit external footprint size -  5000mm x 6000mm with a 300mm Full side overhang to include matching Redwood under cladding

Pent Roof - 2500mm at the front sloping to 2300mm at the rear



ROOF - EPDM RUBBER - Due to its composition, essentially EPDM polymers and carbon black,  EPDM offers unmatched resistance to ozone, UV radiation, and ultimately ageing. Remains flexible at temperatures down to -45 degrees and can elongate over 300% to accommodate building movements and temperature fluctuations. Requires little or no maintenance. This feature combined with the inherent durability and competitive installed cost of EPDM roofing systems, result in a very low life-cycle cost.

FRAME - C16 CLS 40mm X 90mm

PURLINS - C24/26 (4x2)/(6x2) inch (Pressure tested dry graded)

FRAMING FIXINGS - Heavy duty twin thread Zinc 100mm fixings

PLINTH/RING BEAM - 60mm x 40mm” High pressure treated Redwood sleepers to ensure maximum life span and substantial floor support.

EXTERIOR CLADDING - Custom SHEDBOX profile  - Imported Scandinavian Redwood Tantalised half-lap - 21mm - Applied with 40mm ring-shank coil nails. 18 points along the clad

WHY REDWOOD? Abundant, renewable and energy-efficient. Redwood is clearly the environmental choice



PLINTH BEARERS - (Ensurers full life of shed by lifting untreated framing timbers off the ground) - Pressure treated red wood ring-bead tailor machined to fit your specific building size. Fully supported floors can now be added to orders with this option selected

EXTERNAL ROOF BOARDING (INCLUDED ON ALL ORDERS) - 18mm 2397 x 1197 Kronospan OSB3

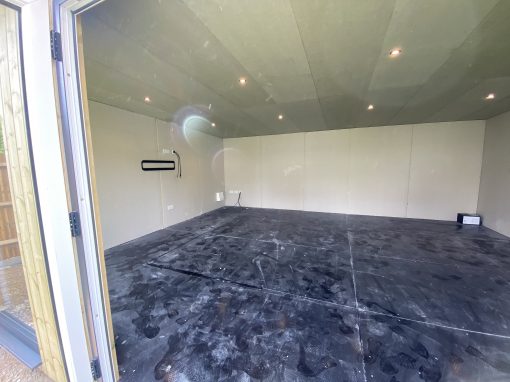

INTERNAL BOARDING - 9mm Moisture resistant MDF - Applied to walls and ceiling

INSULATION - 30mm Celetex - Applied to walls and ceiling

WATERPROOF PANEL MEMBRANE - Made of high density polyethylene fibres for long-term protection against the elements. This durable, lightweight breathable membrane is wind tight and water resistant and designed for use in new build, refurbishment or extension projects. Highly permeable to water vapour – can be fixed directly to insulation (Sd-value: 0.01m). Enhances the airtightness of the construction / Long-term reliability / CE marked / Fully BBA, IAB, and UKAS approved / BBA certificate: 90/2548

HEAVY DUTY MARINE PLY FLOOR - Tanalised load bearing support timbers (18mm boarding as standard)

PVC FRENCH DOORS - Open out - Anthracite Grey - 1700mm(W) x 2000mm(H) - X1 Pair

PVC WINDOWS - Solid Pane - Anthracite Grey - 1000mm(W) x 2000mm(H) - X2

INTERNAL TRIM KIT - PVC trimming/wooden mouldings applied to board joints, corners, windows and doors - Anthracite

EXTERNAL CORNER TRIM KIT - Plastic coated tin with eased edge profile to be applied to corners and external roof edges - Anthracite Grey



SELF BUILD - The building would arrive in pre-fabricated panels with all the materials required to complete and would be delivered by one of our qualified joiners who would go through the full erection process with you. All panels & apex's are tradesman built with exceptional quality and workmanship.

Installation is available please contact us for more information

DELIVERY NOT INCLUDED, PLEASE SEE BELOW:



Delivery is charged at £2.50 per mile, one way from our Shropshire workshop to your address. Once you have placed your order you will need to send us a message with your full address, post code, contact telephone number and email address, we will then notify you of the additional delivery charge.

All of our buildings are made to order therefore the lead time from order confirmation to delivery is currently 6 weeks
