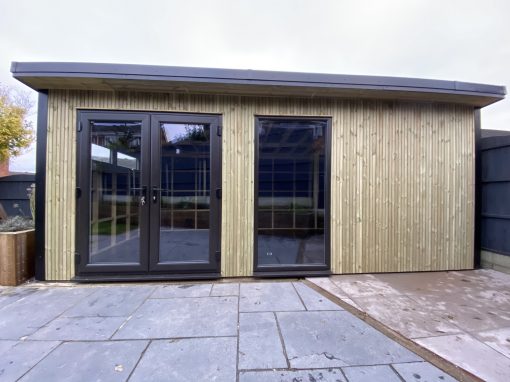

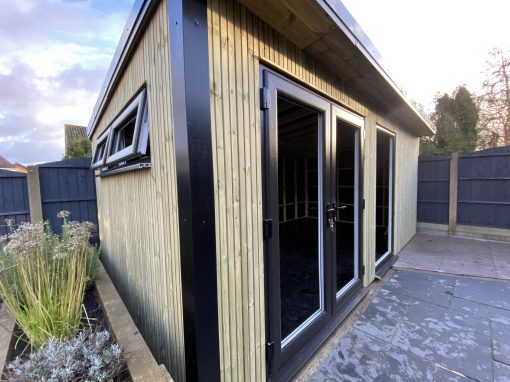

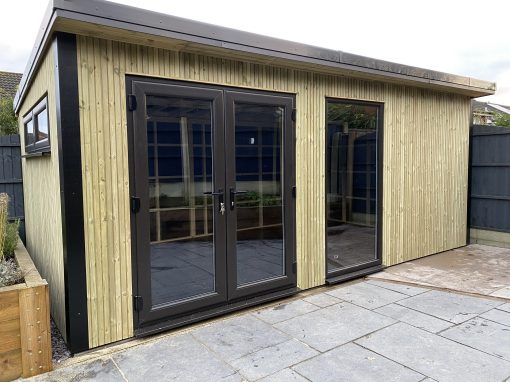

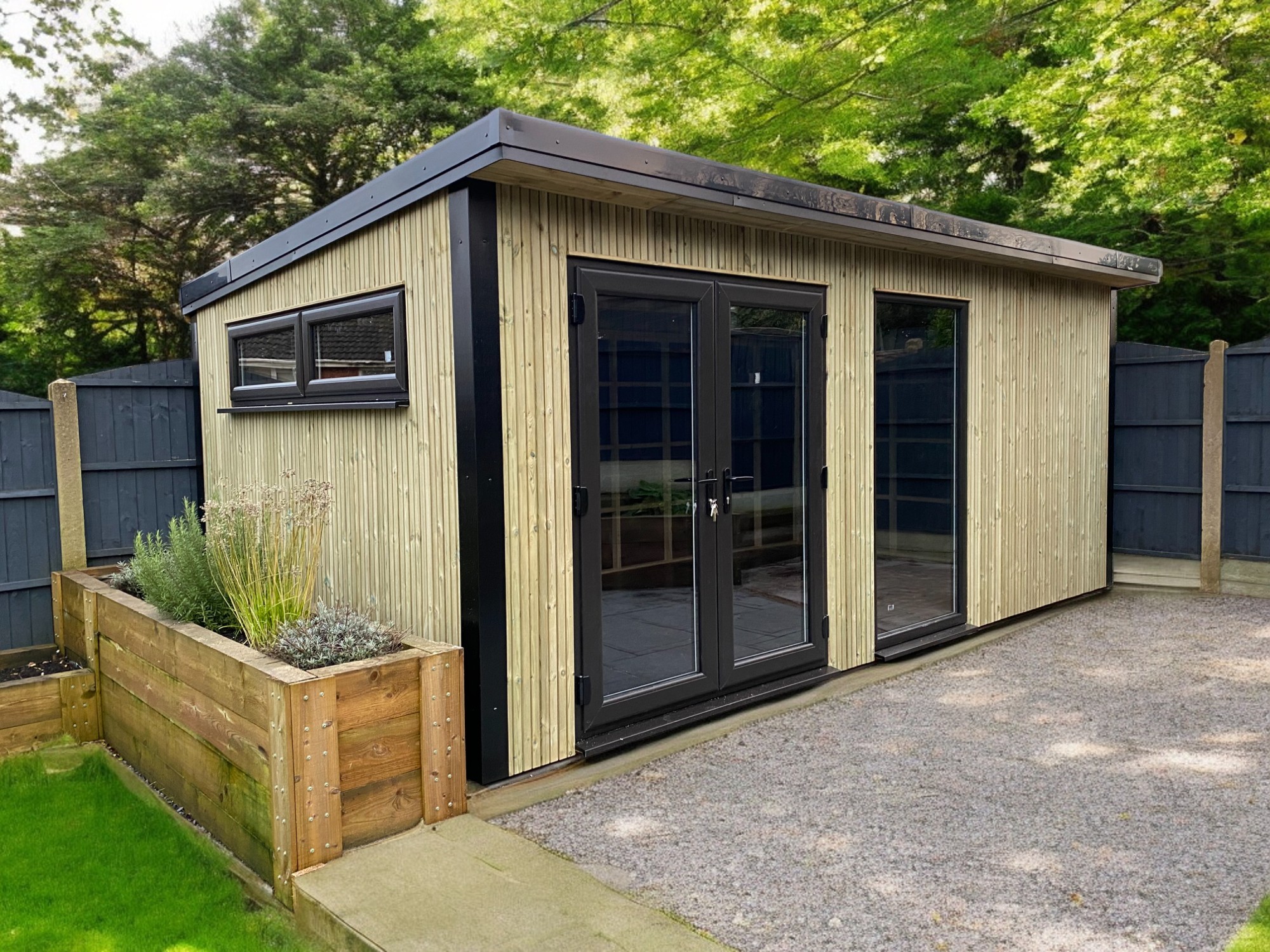

The Edge – 3290mm x 5650mm

Base unit external footprint size -  2990mm x 5650mm with a 300mm x 5650mm Full side overhang

Pent Roof - 2500mm at the front sloping to 2300mm at the rear

ROOF - EPDM RUBBER - Due to its composition, essentially EPDM polymers and carbon black,  EPDM offers unmatched resistance to ozone, UV radiation, and ultimately ageing. Remains flexible at temperatures down to -45 degrees and can elongate over 300% to accommodate building movements and temperature fluctuations. Requires little or no maintenance. This feature combined with the inherent durability and competitive installed cost of EPDM roofing systems, result in a very low life-cycle cost.

FRAME - C16 CLS 40mm X 60mm - (see below for alternative options)

PURLINS - C24/26 (4x2)/(6x2)inch (Pressure tested dry graded)

FRAMING FIXINGS - Heavy duty twin thread Zinc 100mm fixings

PLINTH/RING BEAM - 60mm x 40mm” High pressure treated Redwood sleepers to ensure maximum life span and substantial floor support.

EXTERIOR CLADDING - Custom SHEDBOX profile  - Imported Scandinavian Redwood EX25mm Castle Edge Profile - Applied with 40mm ring-shank coil nails. 18 points along the clad - Vertical cladding

WHY REDWOOD? Abundant, renewable and energy-efficient. Redwood is clearly the environmental choice

PLINTH BEARERS - (Ensurers full life of shed by lifting untreated framing timbers off the ground) - Pressure treated red wood ring-bead tailor machined to fit your specific building size. Fully supported floors can now be added to orders with this option selected

GROUND ANCHOR KIT - (Thunder bolts concrete screws secured into the concrete 175mm mm fixings) - Secures building to the concrete floor & now means the building can be damp sealed - Ask for more information. Ground anchor kits are required on all porch/overhang upright posts to ensure position fixture.

EXTERNAL ROOF BOARDING (INCLUDED ON ALL ORDERS) - 18mm 2397 x 1197 Kronospan OSB3

WATERPROOF PANEL MEMBRANE - Made of high density polyethylene fibres for long-term protection against the elements. This durable, lightweight breathable membrane is wind tight and water resistant and designed for use in new build, refurbishment or extension projects. Highly permeable to water vapour – can be fixed directly to insulation (Sd-value: 0.01m). Enhances the airtightness of the construction / Long-term reliability / CE marked / Fully BBA, IAB, and UKAS approved / BBA certificate: 90/2548

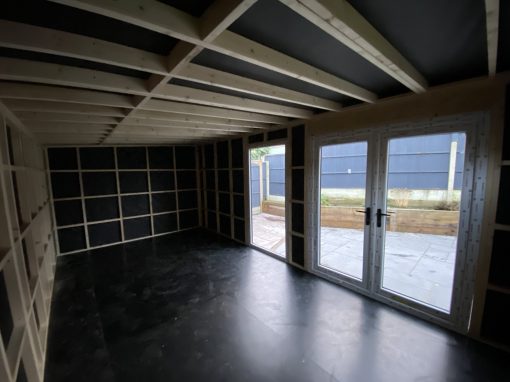

FULLY INSULATED FLOOR - Heavy duty Marine Ply, tanalised load bearing support timbers (18mm boarding as standard) to include 30mm Celetex insulation

PVC FRENCH DOORS - Open out - Anthracite Grey - 1700mm(W) x 2000mm(H) - X1 Pair

PVC WINDOW - Solid Pane - Anthracite Grey - 1000mm(W) x 2000mm(H) - X1

PVC WINDOW - Double open out - Anthracite Grey - 2000mm(W) x 2000mm(H) - X1

EXTERNAL CORNER TRIM KIT - Plastic coated tin with eased edge profile to be applied to corners and external roof edges - Anthracite Grey

FLOOR/PLINTH SEAL KIT - Seals your pressure treated plinth to your concrete base. Includes a waterproof gap sealant (clear), gun for application and re-useable sealant edging kit.

HIGH FLOW GUTTER KIT - TO RUN AONG THE REAR - (High flow Black) Will prevent rain water collecting around the base of the shed thus keeping water damage to a minimum around the base.

SELF BUILD - The building would arrive in pre-fabricated panels with all the materials required to complete and would be delivered by one of our qualified joiners who would go through the full erection process with you. All panels & apex's are tradesman built with exceptional quality and workmanship.

Installation is available across our full range, please contact us for more information

DELIVERY NOT INCLUDED, PLEASE SEE BELOW:

Delivery is charged at £2.50 per mile, one way from our Shropshire workshop to your address. Once you have placed your order you will need to send us a message with your full address, post code, contact telephone number and email address, we will then notify you of the additional delivery charge.

All of our buildings are made to order therefore the lead time from order confirmation to delivery is currently 6 weeks
